- 交易 Hash 0xfae5e751b8ce01457cbb6b529839f24a0cff50faaabcbd0fd02ca0cf559b050e
- 损失 ~70.83 ETH
- 事故还原:Attacker 利用 USM Protocol 设计的经济模型上的漏洞实现了攻击,首先利用 FlashLoan 借入了 11579 ETH,随后使用 fund() 向 USM Protocol 合约账户存入这 11579 ETH,紧接着分 64 次使用 defund() 取出,每次取出约 182 ETH ,最终获利约 70.83 ETH。
- 漏洞剖析:Etherscan 上的 USM Protocol 合约源码 中可以看到 USM Protocol 的源代码。
主要问题出现在下面这两段代码上:
function ethFromDefund(LoadedState memory ls, uint fumSupply, uint fumIn)
public pure returns (uint ethOut, uint adjShrinkFactor)
{
// Burn FUM at a sliding-down FUM price. Our approximation technique here resembles the one in fumFromFund() above,
// but we need to be even more clever this time...
// 1. Calculating the initial FUM sell price we start from is no problem:
uint adjustedEthUsdPrice0 = adjustedEthUsdPrice(IUSM.Side.Sell, ls.ethUsdPrice, ls.bidAskAdjustment);
uint fumSellPrice0 = fumPrice(IUSM.Side.Sell, adjustedEthUsdPrice0, ls.ethPool, ls.usmTotalSupply, fumSupply, false);
{ // Scope for adjShrinkFactor, to avoid the dreaded "stack too deep" error. Thanks Uniswap v2 for the trick!
// 2. Now we want a "pessimistic" lower bound on the ending ETH pool qty. We can get this by supposing the entire
// burn happened at our initial fumSellPrice0: this is "optimistic" in terms of how much ETH we'd get back, but
// "pessimistic" in the sense we want - how much ETH would be left in the pool:
uint lowerBoundEthQty1 = ls.ethPool - fumIn.wadMulUp(fumSellPrice0);
uint lowerBoundEthShrinkFactor1 = lowerBoundEthQty1.wadDivDown(ls.ethPool);
// 3. From this "pessimistic" lower bound on the ending ETH qty, and a similarly pessimistic netFumDelta value of 4
// (the netFumDelta when debt ratio is at the highest value it can end at here, MAX_DEBT_RATIO), we can calculate a
// "pessimistic" lower bound on our ending adjustedEthUsdPrice, ie, overstating how large an impact our burn could
// have on the ETH/USD price used to calculate our FUM sell price:
uint adjustedEthUsdPrice1 = adjustedEthUsdPrice0.wadMulDown(lowerBoundEthShrinkFactor1.wadPowDown(FOUR_WAD));
// 4. From adjustedEthUsdPrice1, we can calculate a pessimistic (upper-bound) debtRatio2 we'll end up at after the
// defund operation, and from debtRatio2, a pessimistic (upper-bound) netFumDelta2 we can hold fixed during the
// calculation:
uint debtRatio1 = debtRatio(adjustedEthUsdPrice1, lowerBoundEthQty1, ls.usmTotalSupply);
uint debtRatio2 = debtRatio1.wadMin(MAX_DEBT_RATIO); // defund() fails anyway if dr ends > MAX, so cap it at MAX
uint netFumDelta2;
unchecked { netFumDelta2 = WAD.wadDivUp(WAD - debtRatio2) - WAD; }
// 5. Combining lowerBoundEthShrinkFactor1 and netFumDelta2 gives us our final, pessimistic adjShrinkFactor, from
// our standard formula adjChangeFactor = ethChangeFactor**(netFumDelta / 2):
unchecked { adjShrinkFactor = lowerBoundEthShrinkFactor1.wadPowDown(netFumDelta2 / 2); }
}
// 6. And adjShrinkFactor tells us the adjustedEthUsdPrice2 we'll end the operation at, from which we can also
// calculate the instantaneous FUM sell price we'll end the operation at, just as we calculated our ending fumBuyPrice1
// in fumFromFund():
uint adjustedEthUsdPrice2 = adjustedEthUsdPrice0.wadMulDown(adjShrinkFactor.wadSquaredDown());
uint fumSellPrice2 = fumPrice(IUSM.Side.Sell, adjustedEthUsdPrice2, ls.ethPool, ls.usmTotalSupply, fumSupply, false);
// 7. We now know the starting fumSellPrice0, and the ending fumSellPrice2. We want to combine these to get a single
// avgFumSellPrice we can use for the entire defund operation, which will trivially give us ethOut. But taking the
// geometric average again, as we did in usmFromMint() and fumFromFund(), is dicey in the defund() case: fumSellPrice2
// could be arbitrarily close to 0, which would make avgFumSellPrice arbitrarily close to 0, which would have the
// highly perverse result that a *larger* fumIn returns strictly *less* ETH! What alternative to geometric average
// gives the best results here is a complicated problem, but one simple option that avoids the avgFumSellPrice = 0 flaw
// is to just take the arithmetic average instead, (fumSellPrice0 + fumSellPrice2) / 2:
uint avgFumSellPrice = fumSellPrice0 + fumSellPrice2;
unchecked { avgFumSellPrice /= 2; }
ethOut = fumIn.wadMulDown(avgFumSellPrice);
}
function fumFromFund(LoadedState memory ls, uint fumSupply, uint ethIn, uint debtRatio_, bool prefund)
public pure returns (uint fumOut, uint adjGrowthFactor)
{
uint adjustedEthUsdPrice0 = adjustedEthUsdPrice(IUSM.Side.Buy, ls.ethUsdPrice, ls.bidAskAdjustment);
uint fumBuyPrice0 = fumPrice(IUSM.Side.Buy, adjustedEthUsdPrice0, ls.ethPool, ls.usmTotalSupply, fumSupply, prefund);
if (prefund) {
// We're in the prefund period, so no fees - fumOut is just ethIn divided by the fixed prefund FUM price:
adjGrowthFactor = WAD;
fumOut = ethIn.wadDivDown(fumBuyPrice0);
} else {
// Create FUM at a sliding-up FUM price. We follow the same broad strategy as in usmFromMint(): the effective ETH
// price increases smoothly during the fund() operation, proportionally to the fraction by which the ETH pool
// grows. But there are a couple of extra nuances in the FUM case:
//
// 1. FUM is "leveraged"/"higher-delta" ETH, so minting 1 ETH worth of FUM should move the price by more than
// minting 1 ETH worth of USM does. (More by a "net FUM delta" factor.)
// 2. The theoretical FUM price is based on the ETH buffer (excess ETH beyond what's needed to cover the
// outstanding USM), which is itself affected by/during this fund operation...
//
// The code below uses a "reasonable approximation" to deal with those complications. See also the discussion in:
// https://jacob-eliosoff.medium.com/usm-minimalist-decentralized-stablecoin-part-4-fee-math-decisions-a5be6ecfdd6f
{ // Scope for adjGrowthFactor, to avoid the dreaded "stack too deep" error. Thanks Uniswap v2 for the trick!
// 1. Start by calculating the "net FUM delta" described above - the factor by which this operation will move
// the ETH price more than a simple mint() operation would. Calculating the pure, fluctuating theoretical
// delta is a mess: we calculate the initial delta and pretend it stays fixed thereafter. The theoretical
// delta *decreases* during a fund() call (as the pool grows, the ETH/USD price increases, and FUM becomes less
// leveraged), so holding it fixed at its initial value is "pessimistic", like we want - ensures we charge more
// fees than the theoretical amount, not less.
uint effectiveDebtRatio0 = debtRatio_.wadMin(MAX_DEBT_RATIO);
uint netFumDelta;
unchecked { netFumDelta = effectiveDebtRatio0.wadDivUp(WAD - effectiveDebtRatio0); }
// 2. Given the delta, we can calculate the adjGrowthFactor (price impact): for mint() (delta 1), the factor
// was poolChangeFactor**(1 / 2); now instead we use poolChangeFactor**(netFumDelta / 2).
uint ethPool1 = ls.ethPool + ethIn;
unchecked { adjGrowthFactor = ethPool1.wadDivUp(ls.ethPool).wadPowUp(netFumDelta / 2); }
}
// 3. Here we use the same simplifying trick as usmFromMint() above: we pretend our entire FUM purchase is done at
// a single fixed price. For that fixed FUM price, we again use the trick of taking the geometric average of the
// starting and ending FUM buy prices, which we can calculate exactly now that we know the ending ETH pool quantity
// (from ethIn) and the ending adjusted ETH/USD price (from the adjGrowthFactor calculated above). This geometric
// average isn't as accurate an approximation of the theoretical integral here as it was for usmFromMint(), since
// the FUM buy price follows a less predictable curve than the USM buy price, but it's close enough for our
// purposes: we mostly just want to charge funders a positive fee, that increases as a % of ethIn as ethIn gets
// larger ("larger trades pay superlinearly larger fees").
uint adjustedEthUsdPrice1 = adjustedEthUsdPrice0.wadMulUp(adjGrowthFactor.wadSquaredUp());
uint fumBuyPrice1 = fumPrice(IUSM.Side.Buy, adjustedEthUsdPrice1, ls.ethPool, ls.usmTotalSupply, fumSupply,
prefund);
uint avgFumBuyPrice = fumBuyPrice0.wadMulUp(fumBuyPrice1).wadSqrtUp(); // Taking the geometric avg
fumOut = ethIn.wadDivDown(avgFumBuyPrice);
}
}
fund() 的时候使用的几何平均数,defund() 的时候使用的算数平均数

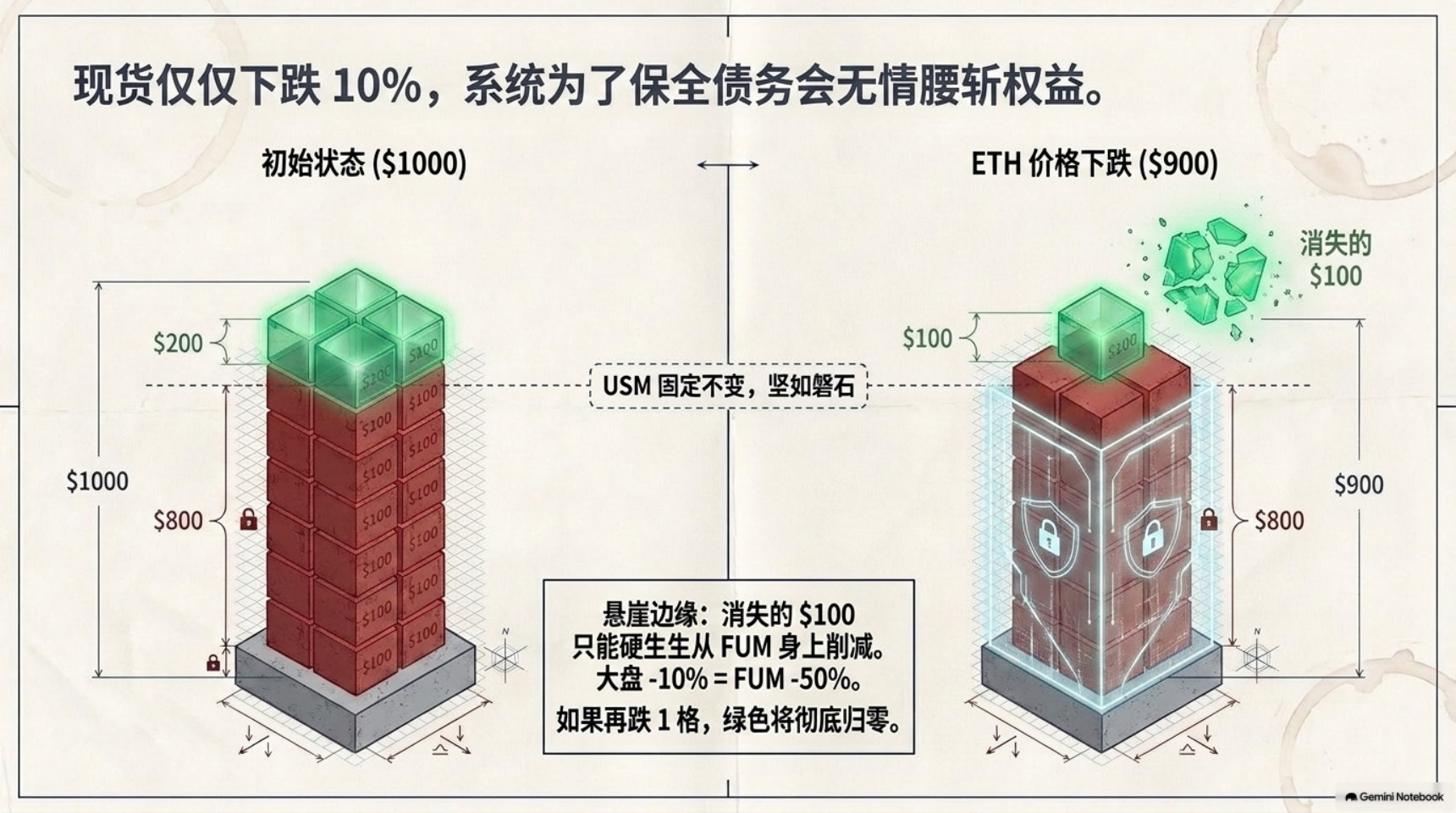

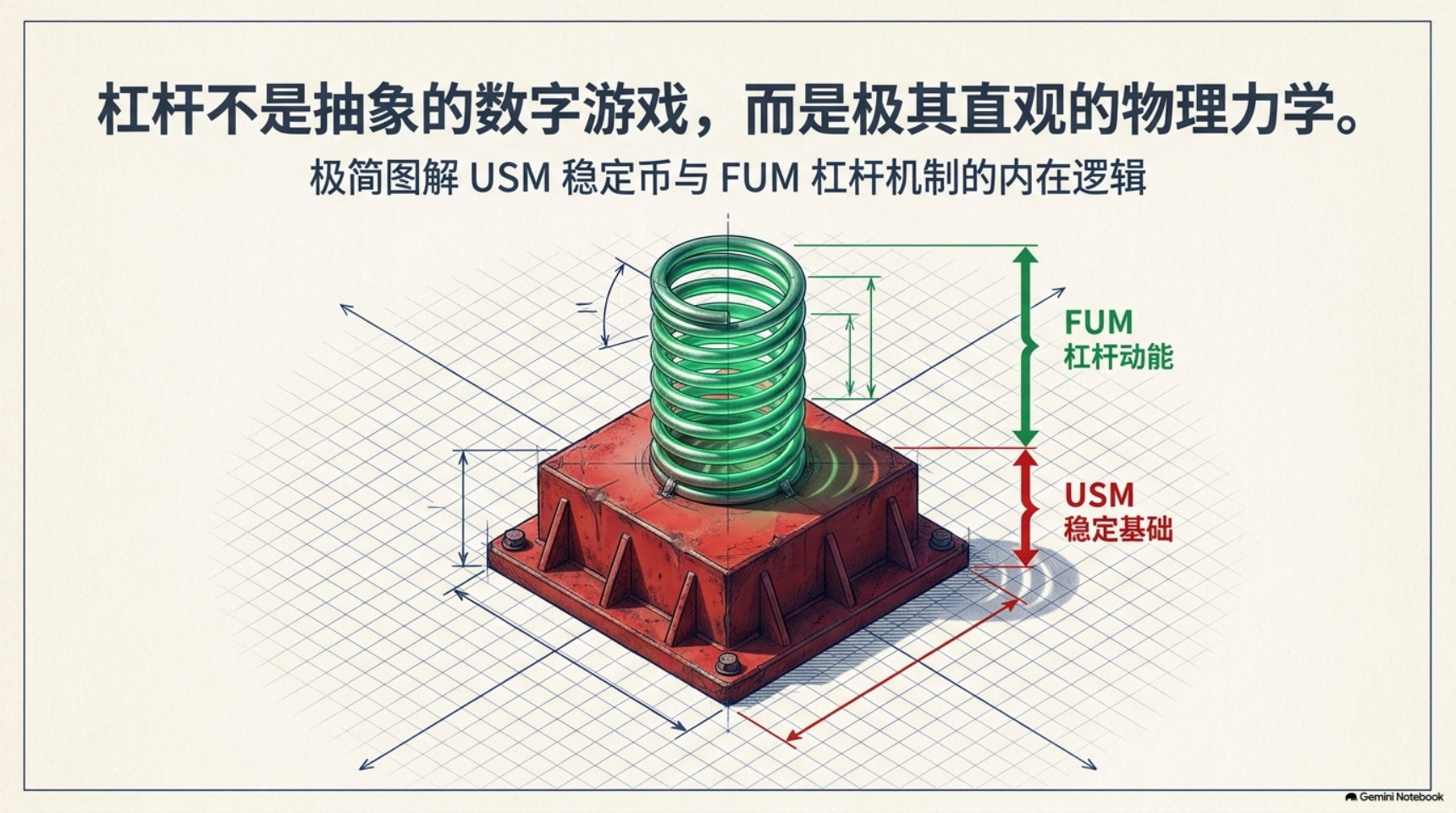

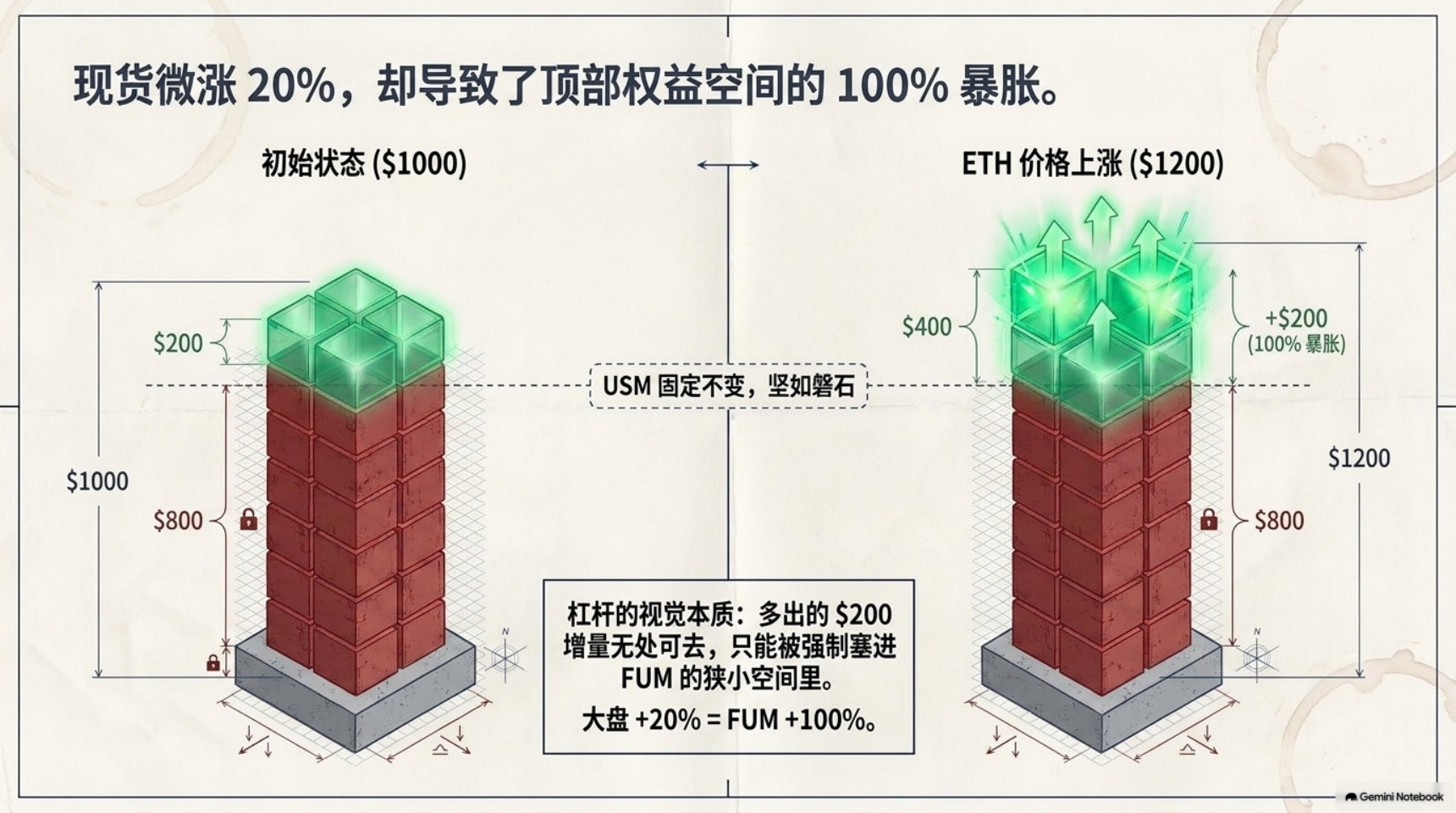

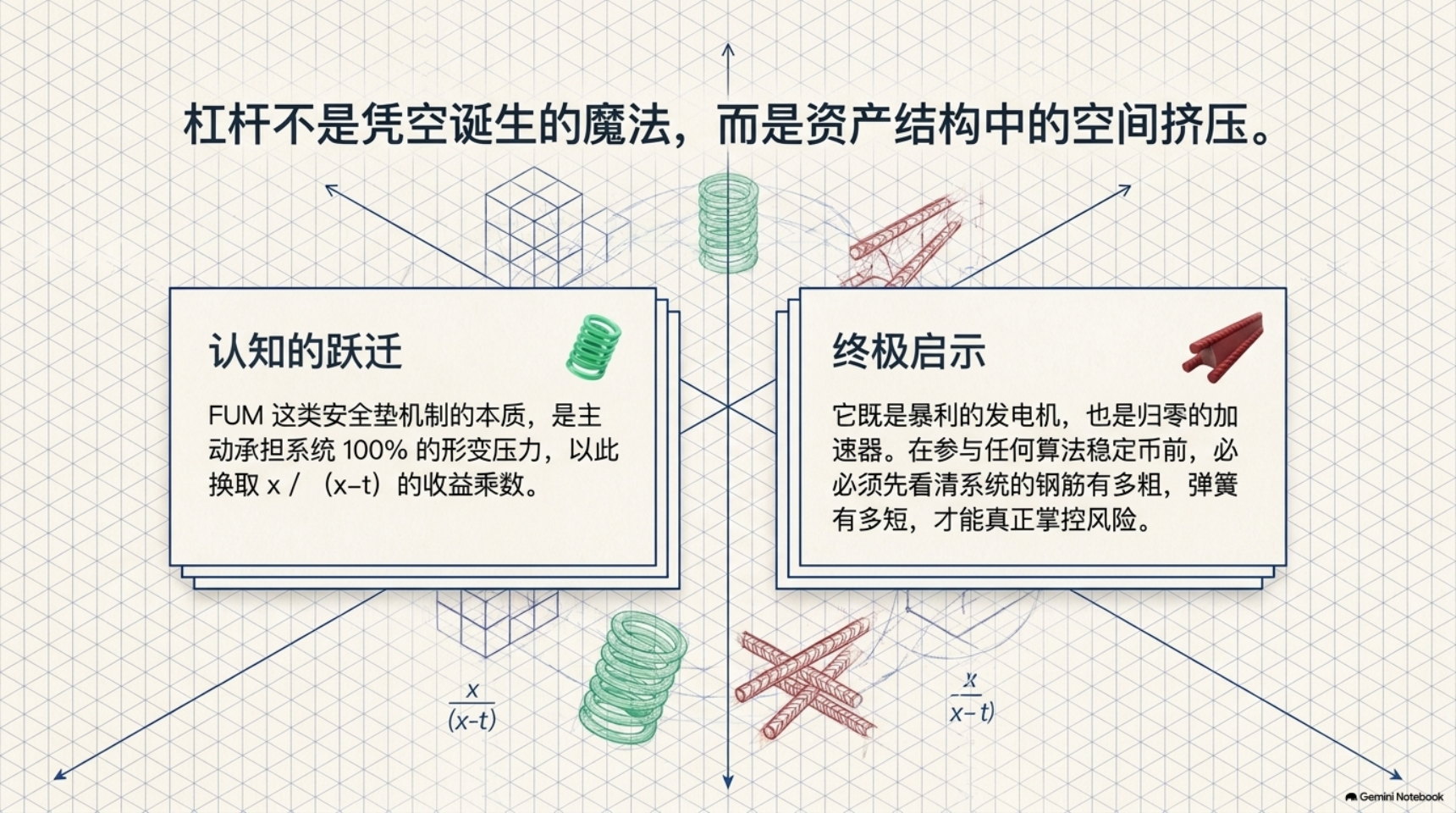

形象化描述:杠杆机制

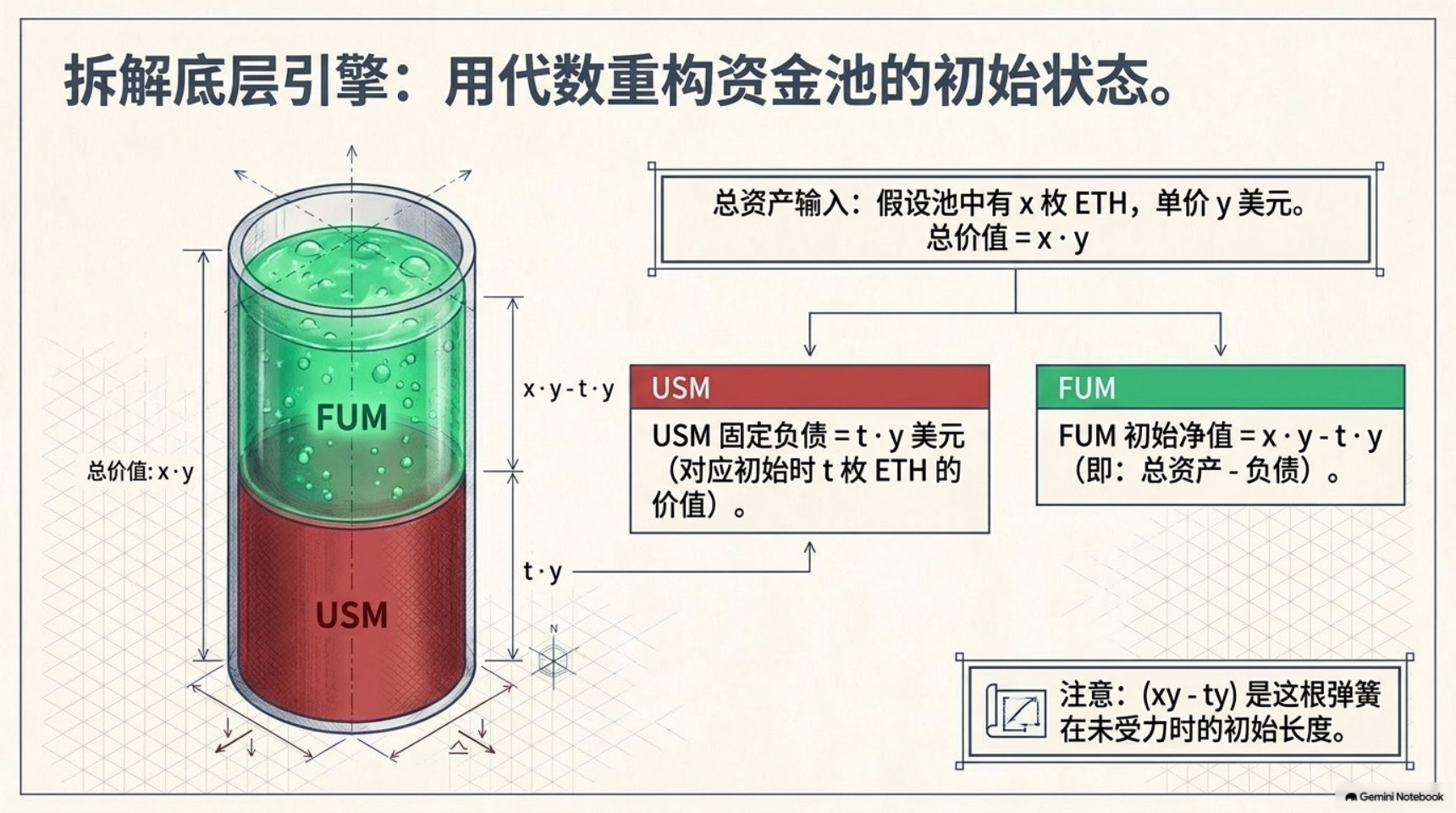

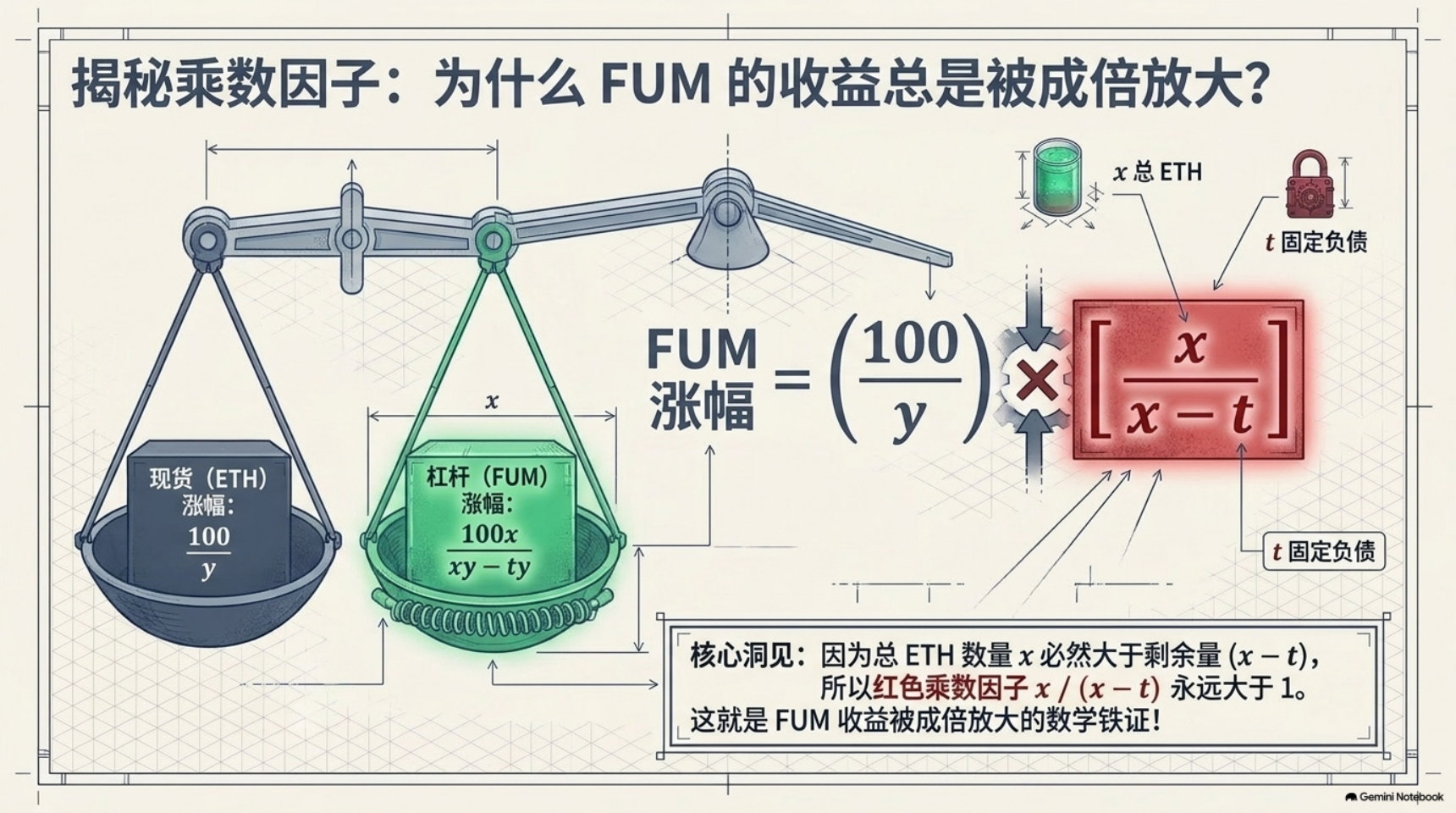

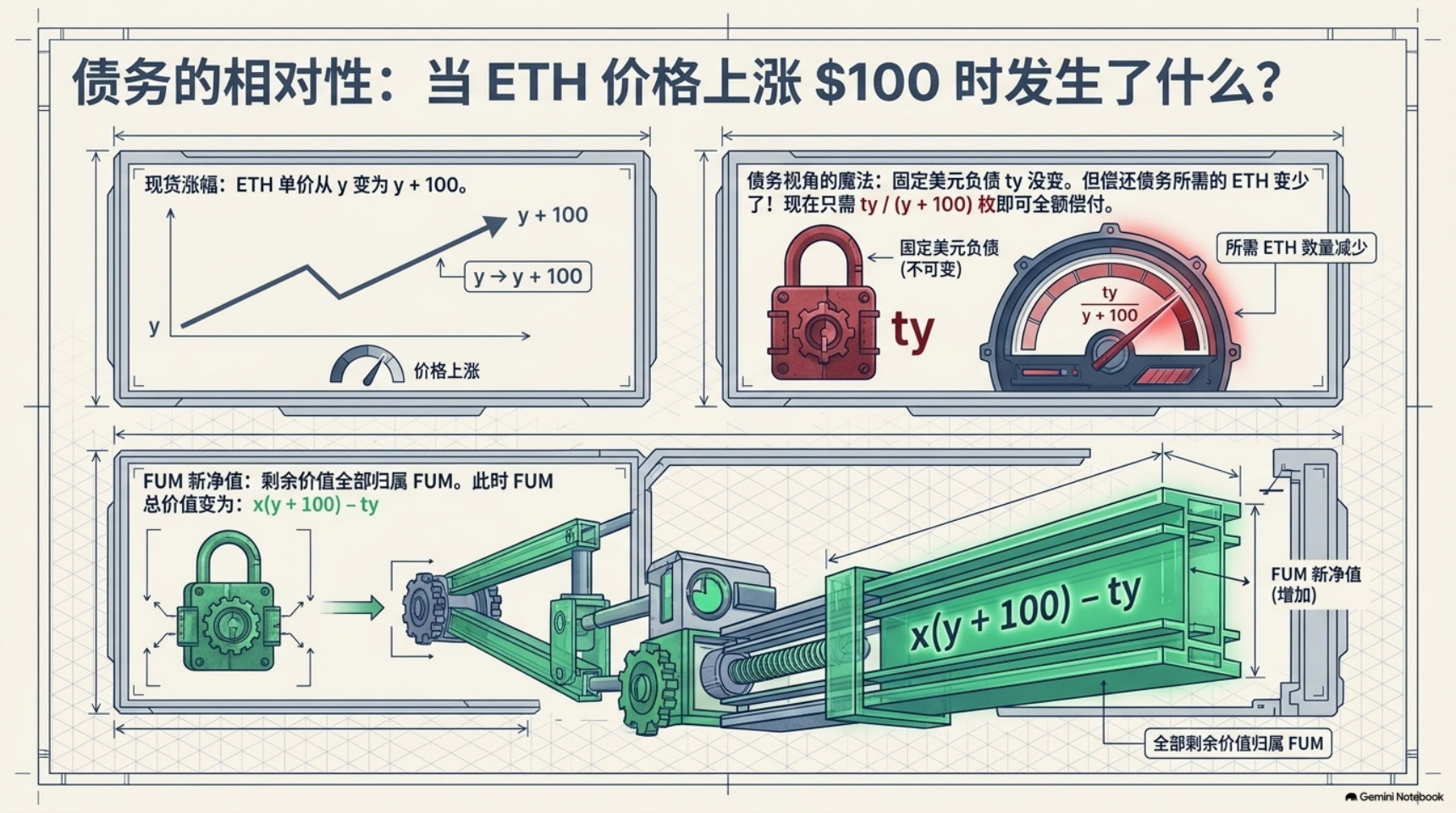

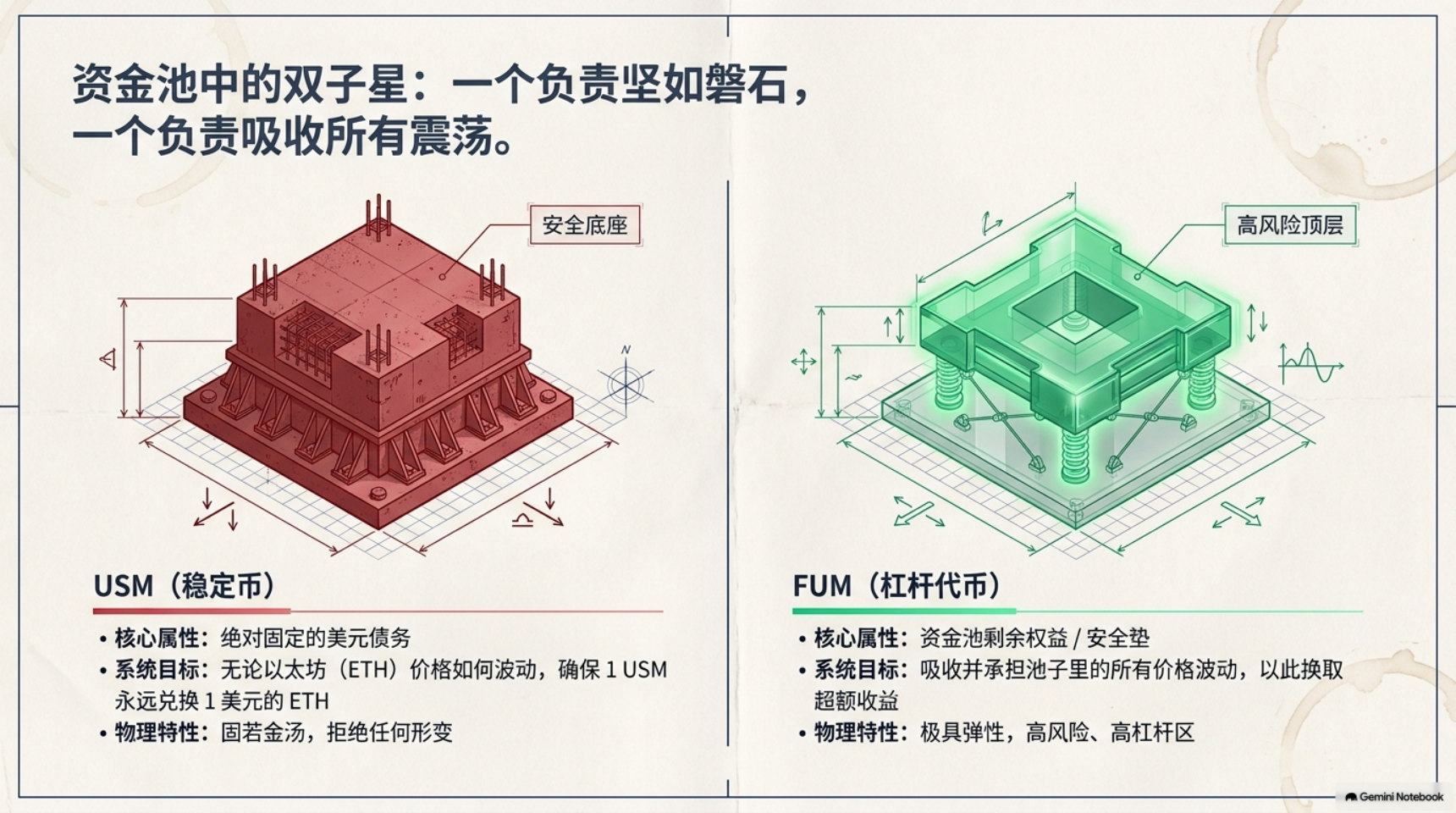

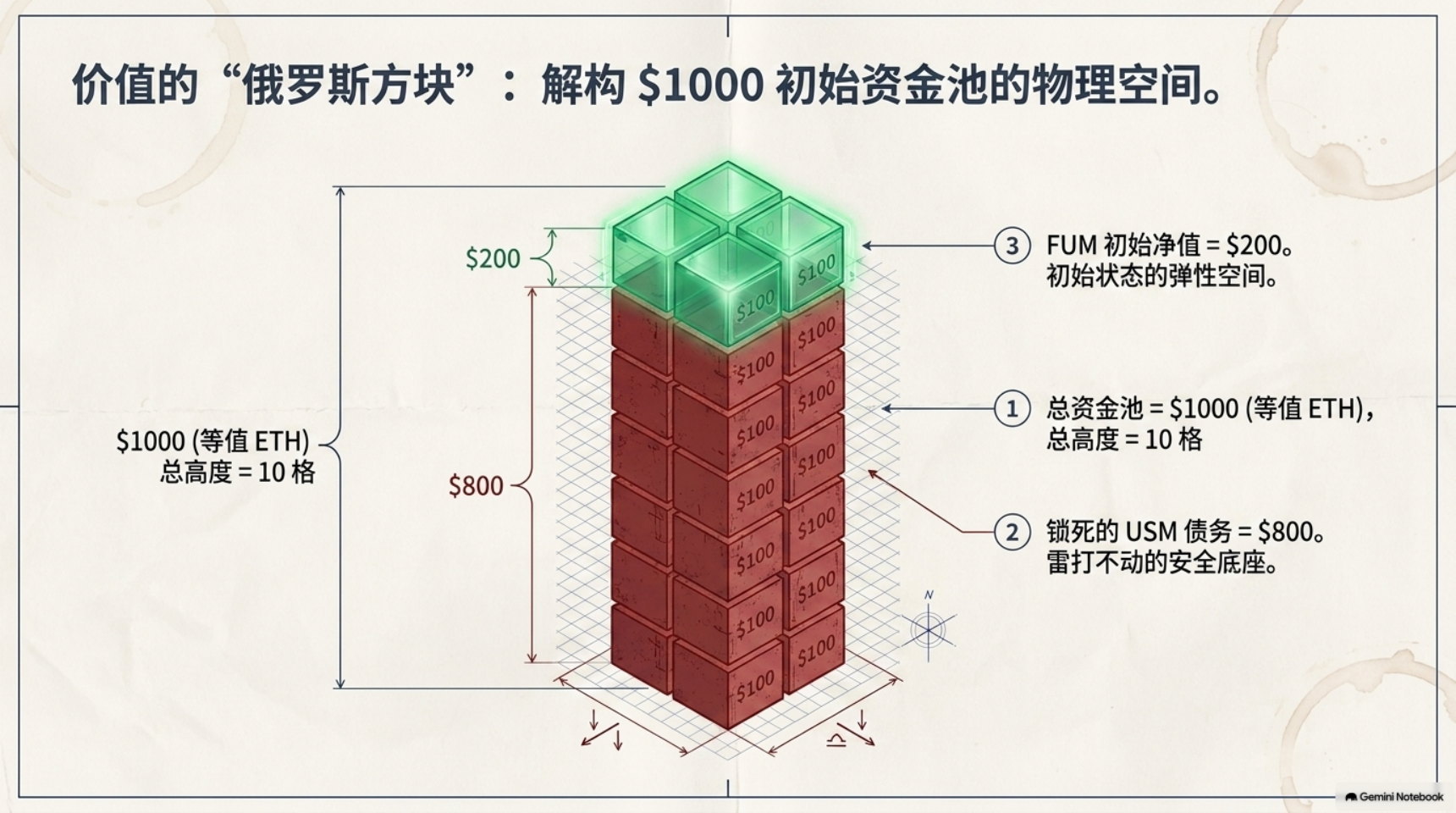

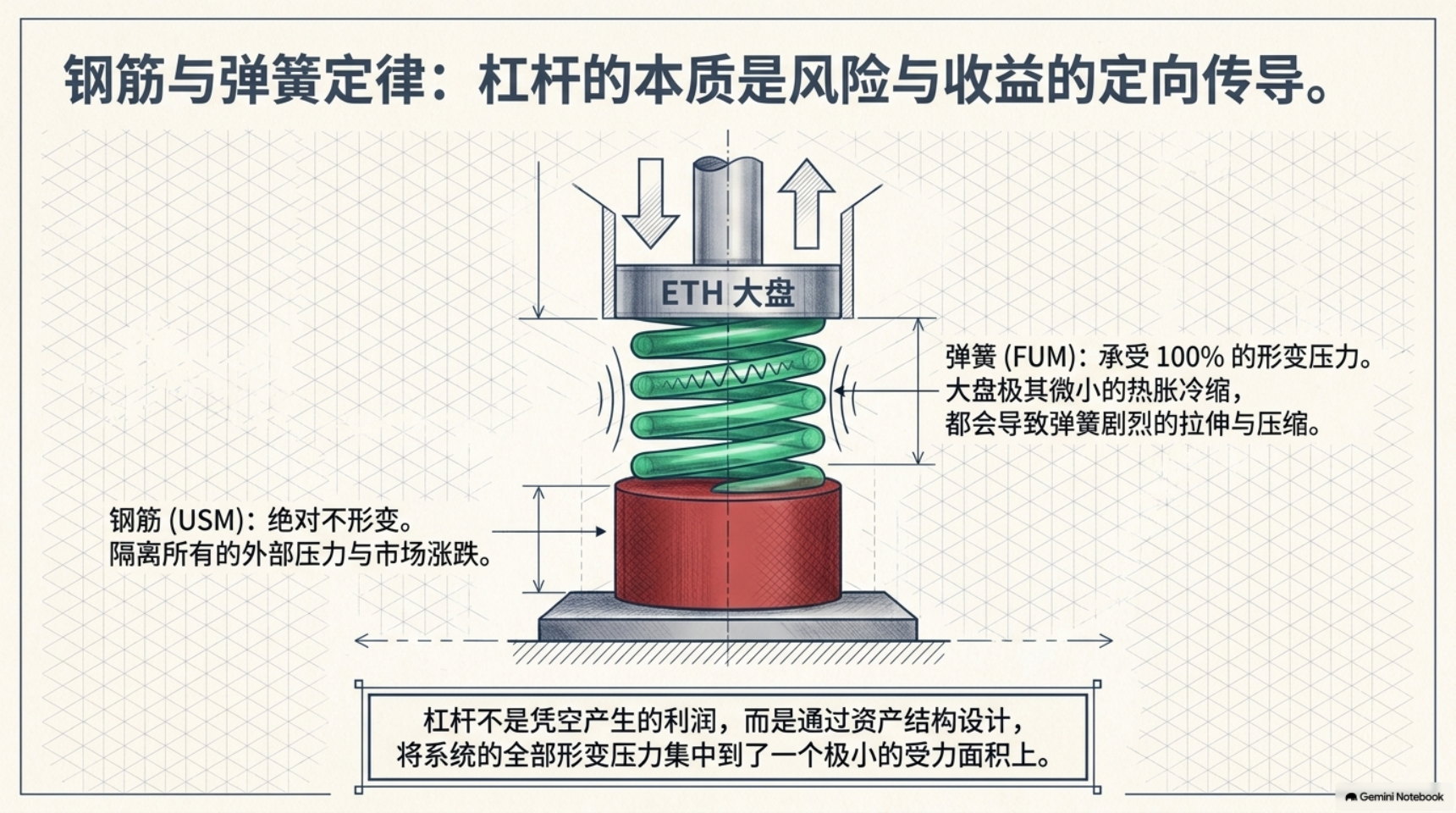

下面用资金池、承重结构与弹簧的类比,把 USM/FUM 的价值分层和杠杆来源串起来。
